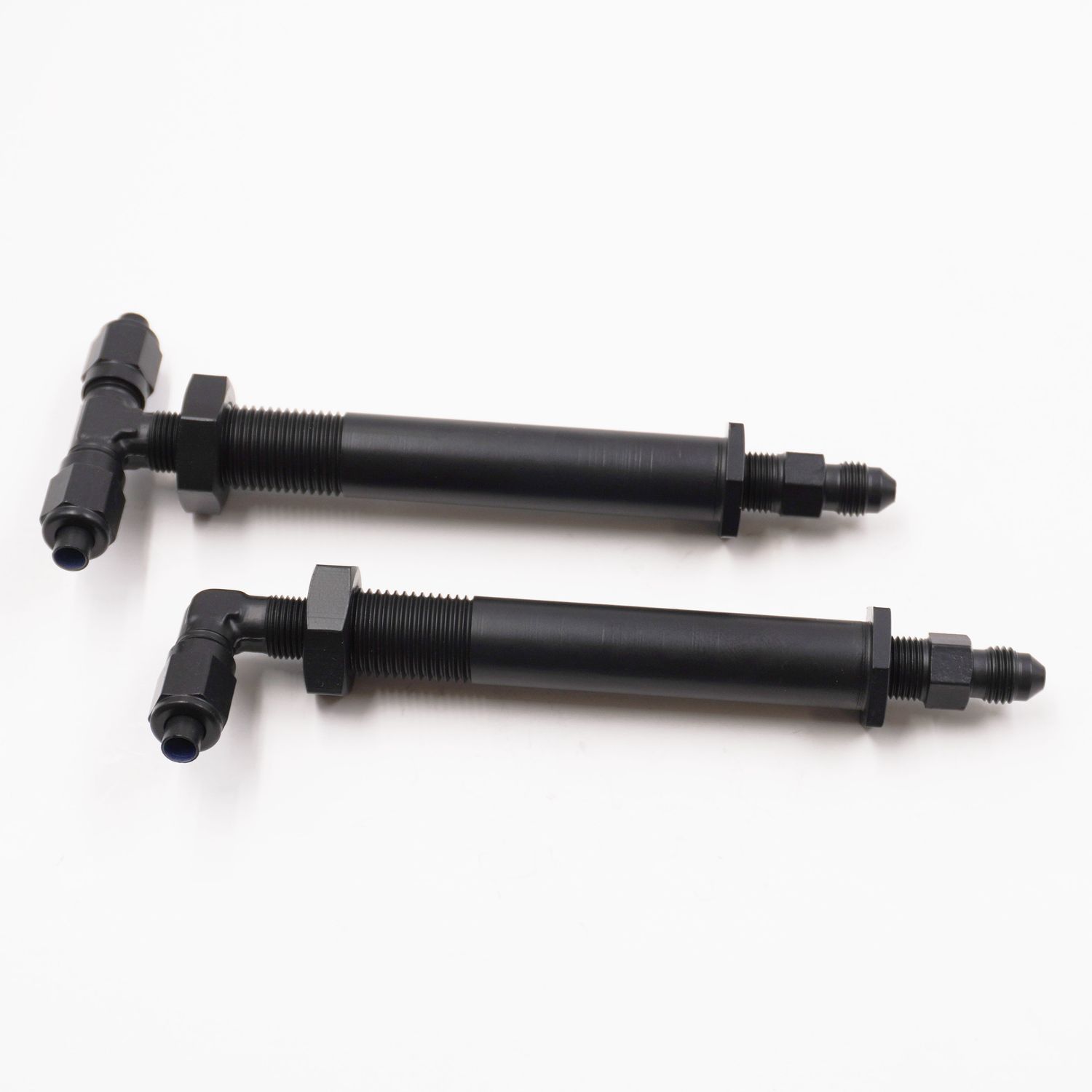

Made in USA. This Pure Stealth Stainless Steel Thru-Frame Fitting Kit is designed for frame rails measuring 2 1/2" to 3" thick. This kit is designed to be used with 3/16" stainless steel hard lines routed on the inside of the boxed frame rails. Requires 9/16" - 5/8" hole through inner and outer frame rail. Connection on the outside of the frame rail is -3AN male to accept a -3AN flex line.

Kit includes:

Two 2 1/2"-3" Thru-Frame Bulkhead & Bulkhead Nut

One 1/8 NPT X-3AN Elbow

One 1/8 NPT X -3AN Tee

Two 1/8 NPT X -3AN Adapters

Three -3AN Tube Nuts

Three -3AN Tube Sleeves

All of the fittings are coated with our proprietary Pure Stealth black ceramic coating. Although our Pure Stealth coating is extremely durable, it can be scratched. Care should be taken during assembly to prevent damaging the coating,
