Made in USA

This kit with 180 degree (straight) service ports works well for installations that include a Sanden SD7B10 compressor with a manifold or block that orients the ports so that they point to the ground. Although this is a universal hose kit, we encourage you to take advantage of our revolutionary new fitting exchange program. Every hose kit includes an exchange form and a pre-addressed exchange envelope. Simply fill out the form, return any of the fittings in the kit and we will exchange them for you. You provide the postage to us and we will provide the postage back to you. With this program, you can start with a universal kit and make it specific to your installation.

Kit Includes:

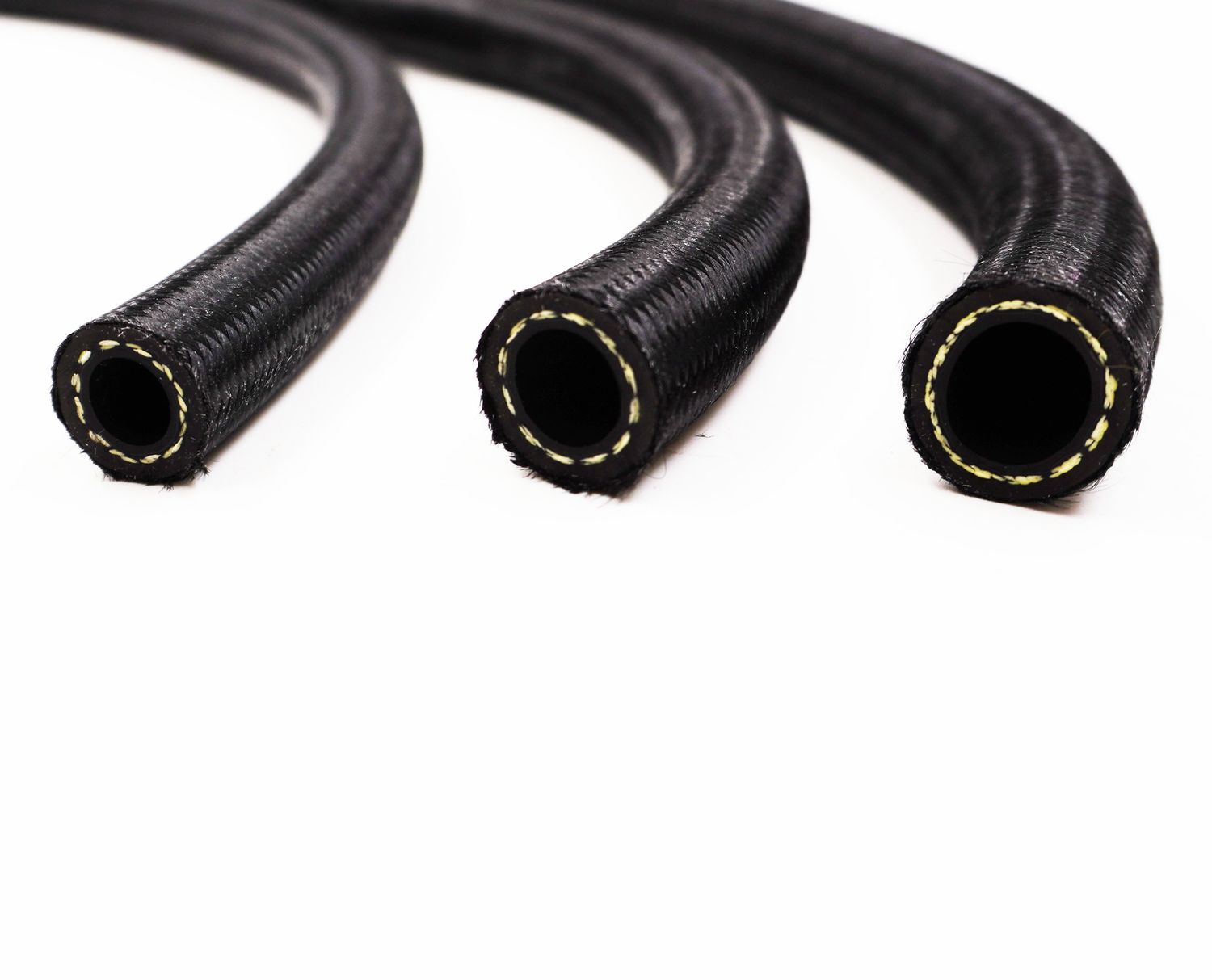

10' Pure Stealth Black Nylon Braided #6 E-Z Clip Hose

6' Pure Stealth Black Nylon Braided #8 E-Z Clip Hose

9' Pure Stealth Black Nylon Braided #10 E-Z Clip Hose

3 Pure Stealth Black E-Z Clip #6 90 Degree Hose Ends

1 Pure Stealth Black E-Z Clip #10 90 Degree Hose End

1 Pure Stealth Black E-Z Clip #8 45 Degree Hose End

1 Pure Stealth Black E-Z Clip #6 45 Degree Hose End

1 Pure Stealth Black E-Z Clip #8 180 Degree Hose End With Service Port

1 Pure Stealth Black E-Z Clip #10 180 Degree Hose End With Service Port

2 Grommets

1 Tube O-Ring Oil

1 Fitting Exchange Envelope

Pure Stealth E-Z Clip Fittings are coated with our proprietary ceramic coating. The coating is extremely durable but it can be scratched. Care should be taken during the assembly and installation process to prevent damaging the coating.

Measure and cut your Pure Stealth Nylon Braided E-Z Clip or standard E-Z Clip hose to the correct length. Slide the supplied heat shrink tube onto the hose along with both of the supplied E-Z Clip clips. Apply a drop of the supplied o-ring oil onto the two viton o-rings on the fitting nipple. Slide the Pure Stealth E-Z Clip fitting into the hose until it bottoms out against the raised collar. Snap the supplied cage onto the fitting as pictured. Slide the two clips over the cage so that they are located in the recessed depressions on the cage. This insures that the clips are aligned directly over the viton o-rings.

Use E-Z Clip pliers to squeeze the clips together until you hear them click. When using our Pure Stealth Braided Nylon E-Z Clip Hose, it may be necessary to use a vise to apply adequate pressure on the pliers.

Slide the heat shrink tube over the cage and clips and use a heat gun or pen torch to shrink it over the assembly.

We suggest orienting the two bumps on the clips away from the line of sight. Lubricate the o-ring and threads on the fitting with the supplied PAG oil and it is ready for installation.

We have the unique ability to incorporate various colors and braiding patterns into all of our Pure Stealth line of hose kits to create a comprehensive visual statement under the hood of your hot rod, muscle car or classic truck.

Color and braiding options are: Pure Stealth Black, Double Blue, Triple Blue, Double Bronze, Triple Bronze, Double Gold, Triple Gold, Double Green, Triple Green, Double Orange, Triple Orange, Double Purple, Triple Purple, Double Red, Triple Rd, Double Teak, Triple Teak, Double White, Triple White, Double Yellow, and Triple Yellow.
