The E-Z Clip refrigerant hose and fitting system is perfect for do-it-yourself builders that want a professional installation without the hassle of crimped-on fittings. E-Z Clip hose is smaller in diameter than standard barrier refrigerant hose and has a much tighter bend radius which allows it to be routed inconspicuously and even hidden from sight.

Each fitting requires a cage which snaps into a groove on the body of the fitting and two clips. The cage helps with fitting retention and aligns the clips to perfectly align over o-rings on the fitting barb. If a fitting needs to be clocked in a different orientation after the clips are installed, simply reverse the E-Z Clip pliers to release the clips, index the fitting appropriately and reinstall the clips.

At Pure Choice Motorsports, we like to install a heat shrink sleeve over the clips and cages to further dress up the installation.

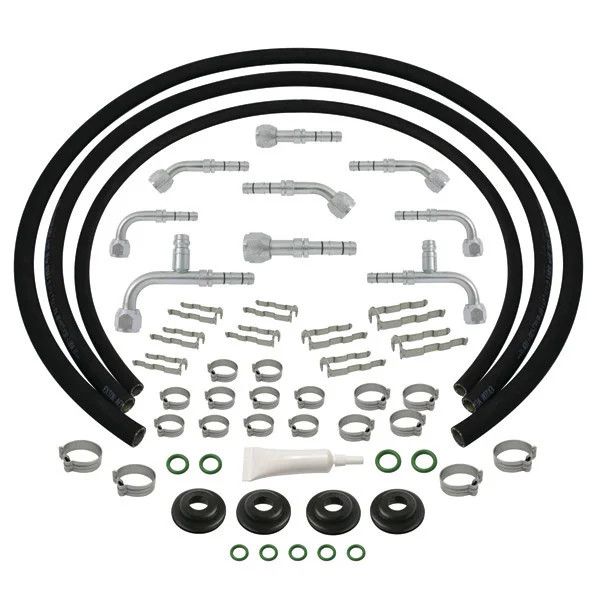

Kit includes:

10' #6 E-Z Clip Hose

9' #10 E-Z Clip Hose

6' #8 E-Z Clip Hose

One #8 90 Degree E-Z Clip Service Port Hose End Fitting

One #10 90 Degree E-Z Clip Service Port Hose End Fitting

One #8 45 Degree E-Z Clip Hose End Fitting

Two #6 45 Degree E-Z Clip Hose End Fittings

Two #6 90 Degree E-Z Clip Hose End Fittings

One #10 Straight E-Z Clip Hose End Fitting

Clips & Cages for all fittings

Four Gromets

O-rings for all fittings

Assembly Oil
